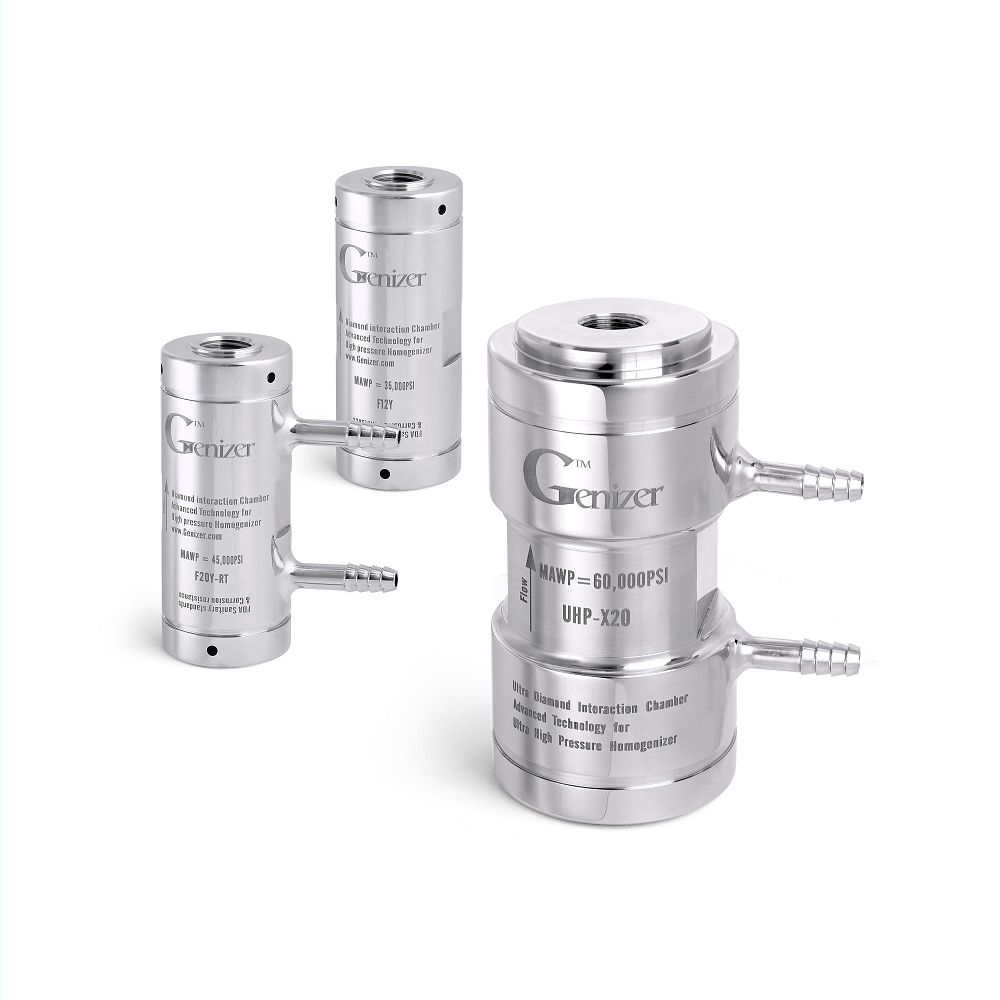

Ultra Diamond Interaction chamber

Ultra High Pressure Diamond Interaction chamber up to 80,000 psi. Warranty: 6 months.
Catalog Number: UHP-X20
    Please select the information you wantX
  • Real-Time Cooling:
    RT
  • Pressure:
    45,000psi 60,000psi 80,000psi
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
+
-
Units
  • Description
  • How to use
  • FAQs and Tips
  • How to Order
Description:
Ultra High Pressure Diamond Interaction Chamber (UHP-DIXC) is used to produce uniform nanoparticles in an ultra-high-pressure homogenizer. The fixed geometry within the UHP-DIXC is intended to create a uniform processing profile so that all materials will be processed with equal disruptive forces. Single-slotted interaction chambers have a single microchannel and are ideal choices for small batch research, while the multi-slotted interaction chamber comprises multiple microchannels in parallel, which can be used at industrial scales, by increasing the flow rate through the UHP-DIXC but with equal processing forces.

Application:
Nanoemulsion, cell disruption, nanodispersion, deagglomeration, liposome

Performance:
Full replacement for the chamber of Microfluidizer processors
Electro-polishing and inner passivation for pharmaceutical applications
Real-time cooling option to reduce oversized particles
Lower cost and higher quality

Specifications
Description Utra high pressure diamond interaction chamber single-slotted, multi-slotted
Brand GenizerTM with high quality
Compatibility Single-slotted: UltraGenizer high pressure homogenizer
Multi-slotted: UltraGenizer high pressure homogenizer
Dimensions
W × D × H
35mm × 35mm × 85mm (single-slotted)
45mm × 45mm × 200mm (multi-slotted)
95mm × 95mm × 300mm (9/16" F
9/16" M multi-slotted)
Weight 1 lbs. (1.0 kg) (single-slotted)
3 lbs. (1.5kg) (multi-slotted)
Cleaning Flush to clean
Sterilization Whole unit autoclavable
Pressure Range 45,000 psi; 60,000 psi; 80,000 psi
Chamber Type Available Single-slotted: UHP-X20

Standard Features
Chamber Type UHP-X-type diamond interaction chamber:
UHP-X20 for UltraGenizer high pressure homogenizer
UHP-X20-2 for UltraGenizer high pressure homogenizer
Max. Pressure 60,000 psi
Product Material 316L stainless steel, diamond, 17-4ph stainless steel
Polishing Condition Electro-polish and passivation for pharmaceuticals
Warranty 1 year against any manufacturing defects

Option Features
Chamber Type Z-type diamond interaction chamber:
H10Z, G10Z, H30Z, H210Z, H230Z, Q50Z, T50Z, T60Z, APM
diamond auxiliary processing modules (APM)
Customer Made Customized laser mark, dimensions and fittings
Max. Pressure 45,000 psi
Product Material Titanium (resistant to strong acid and base)
Product Cooling Real-time cooling on chamber


1) Keep 2-3 turns of thread be visible on the end of the tubing

High Pressure Fitting

2) For maximizing the stability of the nanosize or bioactivity, please select RT chambers
Is this compatible with Microfluidizer?
All the chambers are compatible with any type of Microfludizer.

What is the matertial of the chambers?
All chambers are diamond interaction chambers instead of ceramic.

What if the chambers are blocking?
By flow reversing the chamber, the blocking can be resolved. In addition, Genizer's high-pressure homogenizers have a unique anti-blocking system that can minimize most of the blocking of the chambers.

How do you confirm the chamber's connection size?
For those Y-Type Diamond Interaction Chambers with female openings, its tubing connection size could be 1/4" or 1/8".
Below is a drawing showing DIXC's female opening details corresponding with its tubing size:




For those Y-Type Diamond Interaction Chambers with male connections, its tubing connection size could be 9/16" or 3/8".
Below is a drawing showing DIXC's male connection details corresponding with its tubing size:






1. Order the unit from your local agent (recommended)


2. Add the item to the cart, get an online quote from our website and confirm the order and payment accordingly. (recommended and economical)



3. Email us to get a quote

4. Order and pay online from the website  if the total amount exceeds $3,000.00.
